THE COMPLETE MMA STRIPING SYSTEM
Built with 98:2 and 1:1 MMA Capability

WHY Methyl Methacrylate (MMA) is the #1 choice in durable markings:

  • An excellent solution for areas where paint just doesn’t last.
  • Perfect for intersections / crosswalks,  bike lanes, stop-bars, bridge decks, stencil projects, parking lots, etc.)
  • More durable than paint, thermoplastic, pre-formed thermoplastic, or tape
  • Lasts 3x-4x longer than traffic paint.
  • Abrasion and corrosion resistant
  • Great snowplow (carbide blade) resistance (especially when inset).
  • Applied at 30 mils vs. 15 mils paint (avg.)
  • Low Life Cycle Cost
  • Extend your striping season -spray down to 35 degrees Fahrenheit.
  • Cold applied, no heat!
MMA Striping System machine
Download PDF Brochure
KEY FEATURES

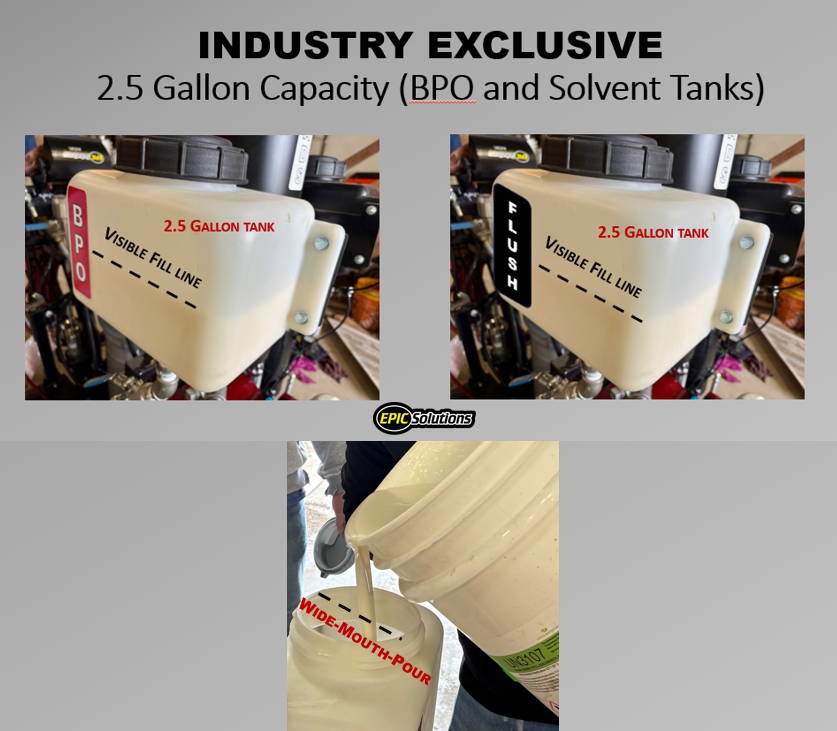

  • LARGE 2.5 GALLON BPO AND SOLVENT TANKS
    • 2.5 Gallon BPO Tank, with wide mouth for filling
      • Key Feature:  White Tank allows to see fill level without removing cap. Add BPO at any time, non-pressurized tank.
    • 2.5 Gallon Solvent Tank, with wide mouth for filling
      • Key Feature: White Tank allows to see fill level without removing cap. Add Acetone at any time, non-pressurized tank.
  • EZ-FLUSH ON-BOARD SYSTEM
    • Powered by an on-board electric pump
    • 100psi Power-Acetone-Flush
    • Quick and easy power flush, no air required. Fill anytime (never pressurized).
  • Accepts a Line Driver and includes a standard 1”-7/8” hitch.
  • Adjustable BPO Feature:  Ambient temperature swings happen; our machine offers a BPO adjustable feature.  Also, largest BPO pump in the industry.
  • Smart Arm – perfect feature that assists with many functions of day-to-day operation.
    • Pivots down for spraying and up for transportation/storage.
    • Locks in at any angle for curb striping.
    • Adjust gun height (fan pattern) up/down with the turn of a lever.
    • Automatically centers spray arm for easy set-up.
  • Infinity Adjustable Handlebars -comfort form/fit to all types of users.

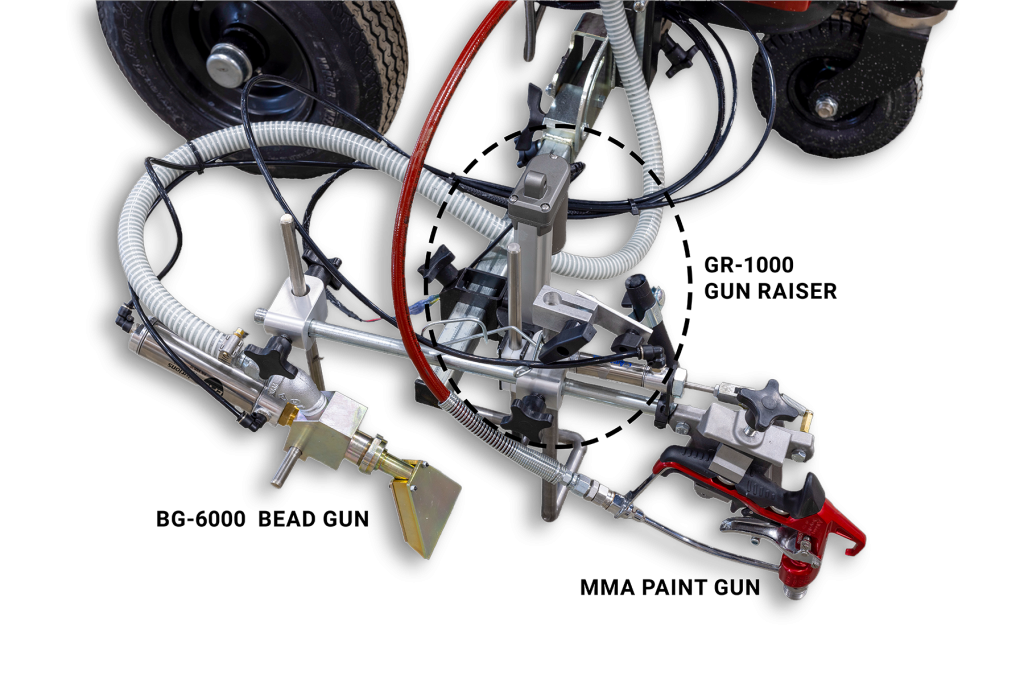

  • Pressurized Bead Tank with on-board compressor included
    • 70lb Bead Tank Reservoir
    • Includes Epic Solutions BG-6000 Bead Gun
  • Automatic Epic Solutions Gun Raiser Included
    • Easily adjust gun width (up/ down) with the push of a button
      • EZ-Toggle Switch Included (mounted on handle-bar)
    • 6” Vertical Gun (up/down) Adjustment
    • Ultimate control -without stopping (stay on your Line Driver = increased productivity)!
    • Includes gun raiser, mount/ hardware, wires, up/down switch.

Epic 98:2 Yellow MMA Application

Epic MMA-MARK 98:2 MMA STRIPER

*MOST POPULAR*

Epic 98:2 MMA-Mark 200 (1-Gun)

98:2 MMA Spray (1-Gun Machine)

Specifications:

  • Honda GX200cc Electric Start Engine with low oil alert
  • 2.50 GPM TITAN/SPEEFLO Pump
  • 3300psi max
  • Epic Solutions Timing System with Data-Center Included, NEW:  brighter and wider box.
  • Pneumatic Auto-Actuating MMA Gun
  • Pressurized 70lb Bead Tank with Epic Bead Gun
  • 12 Gallon Reservoir with Lid Included
  • Hydraulic Pump: 40 cycles per gallon = less repacks
  • Automatic EPIC SOLUTIONS Gun Raiser Included

Epic 98:2 MMA-Mark 250 (2-Gun)

98:2 MMA Spray (2-Gun Machine)

Specifications:

  • Honda GX200cc Electric Start Engine with low oil alert
  • 2.50 GPM TITAN/SPEEFLO Pump
  • 3300psi max
  • Epic Solutions Timing System with Data-Center Included, NEW:  brighter and wider box.
  • Pneumatic Auto-Actuating MMA Guns
  • Pressurized 70lb Bead Tank with Epic Bead Guns
  • 12 Gallon Reservoir with Lid Included
  • Hydraulic Pump: 40 cycles per gallon = less repacks
  • Automatic EPIC SOLUTIONS Gun Raiser Included

Epic 1:1 MMA-Mark 150
(1-Gun or 2-Gun)

1:1 MMA Spray (1-Gun or 2-Gun Machine)

Specifications:

  • Honda GX200cc Electric Start Engine with low oil alert
  • 2.50 GPM TITAN/SPEEFLO Pumps
  • 3300psi max
  • Epic Solutions Timing System with Data-Center Included, NEW:  brighter and wider box.
  • Pneumatic Auto-Actuating MMA Gun(s)
  • Pressurized 70lb Bead Tank with Epic Bead Gun(s)
  • 12 Gallon Reservoir with Lid Included

Epic MMA-Mark 100

  • 3300 PSI
  • 2.5 GPM
  • 50 lbs. Bead Tank
  • 4 CFM and 120 PSI
  • 7HP Electric Start 200W
  • Standard 1:1 Ratio
  • One Gun
  • No Datalogger

Epic MMA-Mark 150

  • 3300 PSI
  • 2.5 GPM
  • 50 lbs. Bead Tank
  • 4 CFM and 120 PSI
  • 7HP Electric Start 200W
  • Standard 1:1 Ratio
  • Two Guns
  • No Datalogger

Epic MMA-Mark 200

  • 3300 PSI
  • 2.5 GPM
  • 50 lbs. Bead Tank
  • 4 CFM and 120 PSI
  • 7HP Electric Start 200W
  • Standard 98:2 Ratio
  • One Gun
  • No Datalogger

Epic MMA-Mark 250

  • 3300 PSI
  • 2.5 GPM
  • 50 lbs. Bead Tank
  • 4 CFM and 120 PSI
  • 7HP Electric Start 200W
  • Standard 98:2 Ratio
  • Two Guns
  • Datalogger
