Compact, Powerful Dust Collection
IMPROVED DESIGN
Increased Suction Power!
Increased Fuel Capacity
Increased RPM
– Engine 3200RPM
– Fan 5400RPM
The SS3000 uses significantly smaller and more powerful filter packs than baghouses, provides better dust collection, and lowers operational costs.
Designed with minimal airflow restriction to provide maximum collection efficiency.
Ideal for:
- Road and Surface Grinders
- Customized to meet your needs.
- Any application that requires a high-volume collection unit.
Specifications:

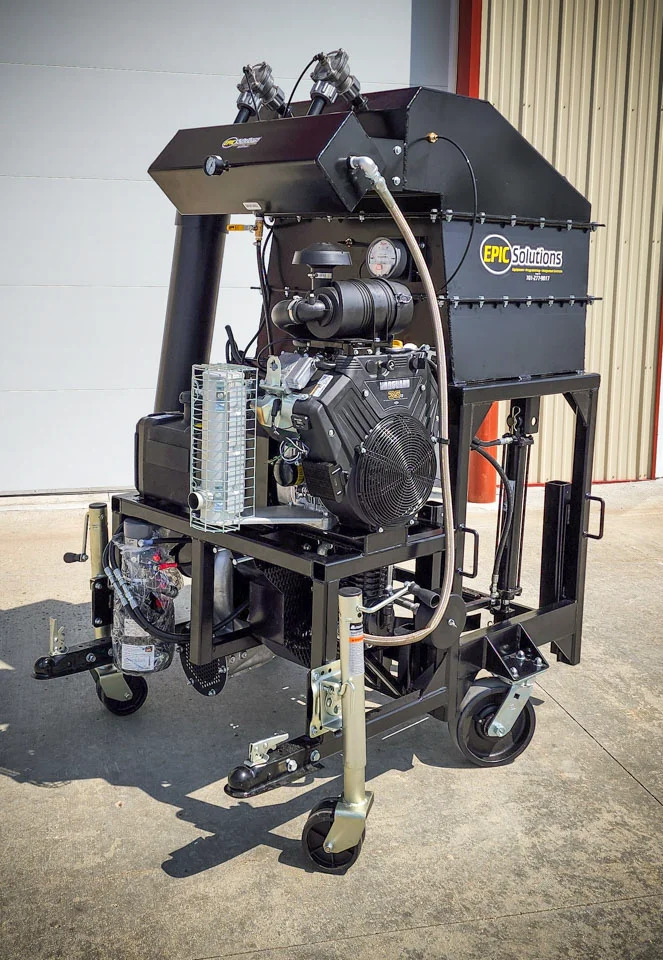

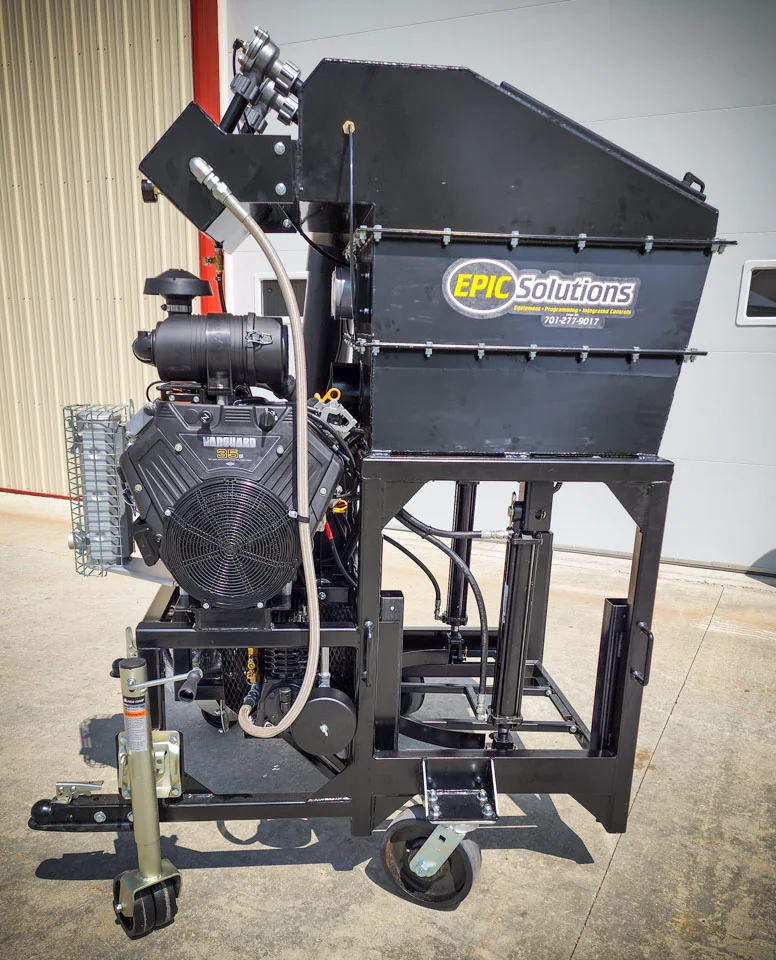

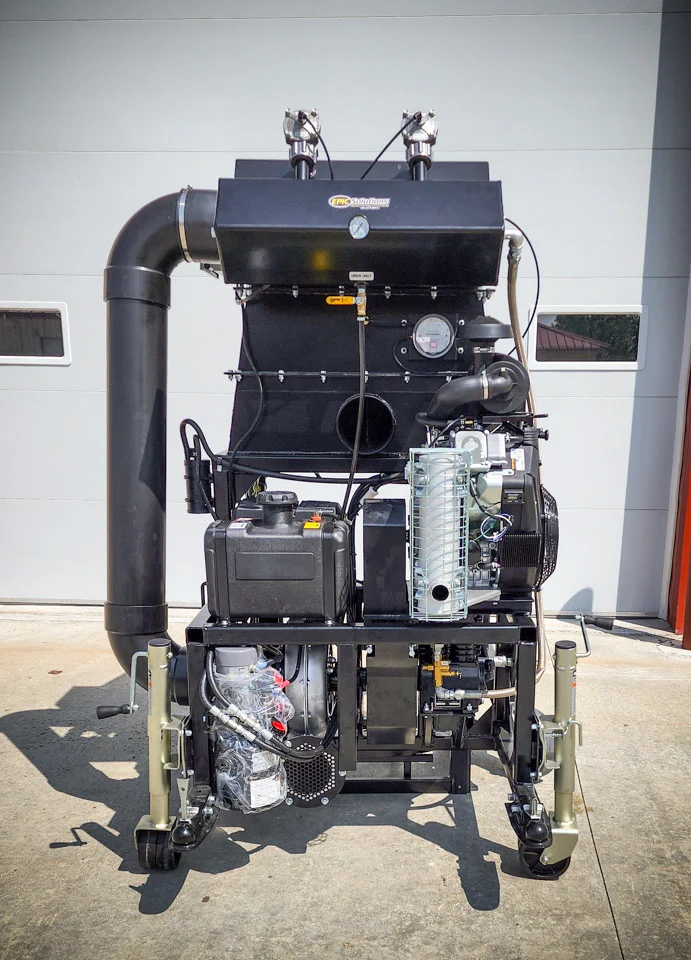

Epic SS3100 Vac – Single 55 Gallon Barrel
- 4’ 6” W x 4’ 6” L x 6’ 8”H
- Vanguard V-Twin 35hp Engine
- Electric start
- 5 Gallon Fuel Reservoir
- Hydraulic waste lift
- 3 Quart Hydraulic Reservoir
- 12VDC Dump Trailer Pump
- Double acting Power-Up / Power-Down with Custom Epic “No-Creep” Assembly
- Handheld 2-button (up/down) pendant with 15-foot cord
- 13CFM Air Compressor (single stage)
- Two Leveling jacks with wheels (1,200lb rated)
- Dual Air Purge Cleaning System
- Ultra-Web Filters – Unique design (2 included with unit)
- 1ea Barrel Capacity
- 55-gallon barrel not included. Pair with any standard 55-gallon drum(s) for easy collection handling.
Epic SS3200 Vac – Double 55 Gallon Barrel
- 7′ W x 6′ L x 6’ 8”H
- Vanguard V-Twin 35hp Engine
- Electric start
- 5 Gallon Fuel Reservoir
- Hydraulic waste lift
- 3 Quart Hydraulic Reservoir
- 12VDC Dump Trailer Pump
- Double acting Power-Up / Power-Down with Custom Epic “No-Creep” Assembly
- Handheld 2-button (up/down) pendant with 15-foot cord
- 13CFM Air Compressor (single stage)
- Two leveling jacks with wheels (1,200lb rated)
- Dual Air Purge Cleaning System
- Ultra-Web Filters – Unique design (2 included with unit)
- 2ea Barrel Capacity
- 55-gallon barrels are not included. Pair with any standard 55-gallon drum(s) for easy collection handling.
SS3100 1 Barrel: 4′-6″ (w) x 4′-6″ (l) x 6′-8″ (h)
SS3200 1 Barrel: 7′ (w) x 6′ (l) x 6′-8″ (h)
