The Epic Solutions TomiHAWK™ Series Trailer

Designed for pavement marking contractors, municipalities, and/or State DOT’s, this solution is an all-in-one transport system for thermoplastic kettles (777lbs to 2000lbs) material and application equipment.

It is fully customizable with space for multiple melting kettles, applicators, and tools with space for the thermoplastic material and glass beads you need for a day’s work. Choose from single or dual melting kettles, applicators, hydraulic liftgate, arrow-board and much more.

TomiHAWK Trailer Specs

  • Available in either a single kettle or double kettle configuration.
  • 20’ Overall Length (Est.)
    • 15’ Trailer Bed
    • 5’ Trailer Tongue
  • Dual Tandem Axle / 14,000 GVWR
    • Electric Brakes on Both Axles
  • Upgraded Diamond Plate Top Deck
  • Powder Coat HD Paint
  • Water Cooler with Mount Included
  • Heavy Duty Square Jack Included
  • All trailers equipped with stake pockets — Add Side Rails now or later!
  • Thermo-Chute slide in storage area included
Safety Features
  • Double Rear Bumper Included
  • Fire Extinguisher with Mount Included
  • Reflective Safety Tape
  • Slide-In Ladder with HD Grab Rail Included — Safely Access Trailer Bed

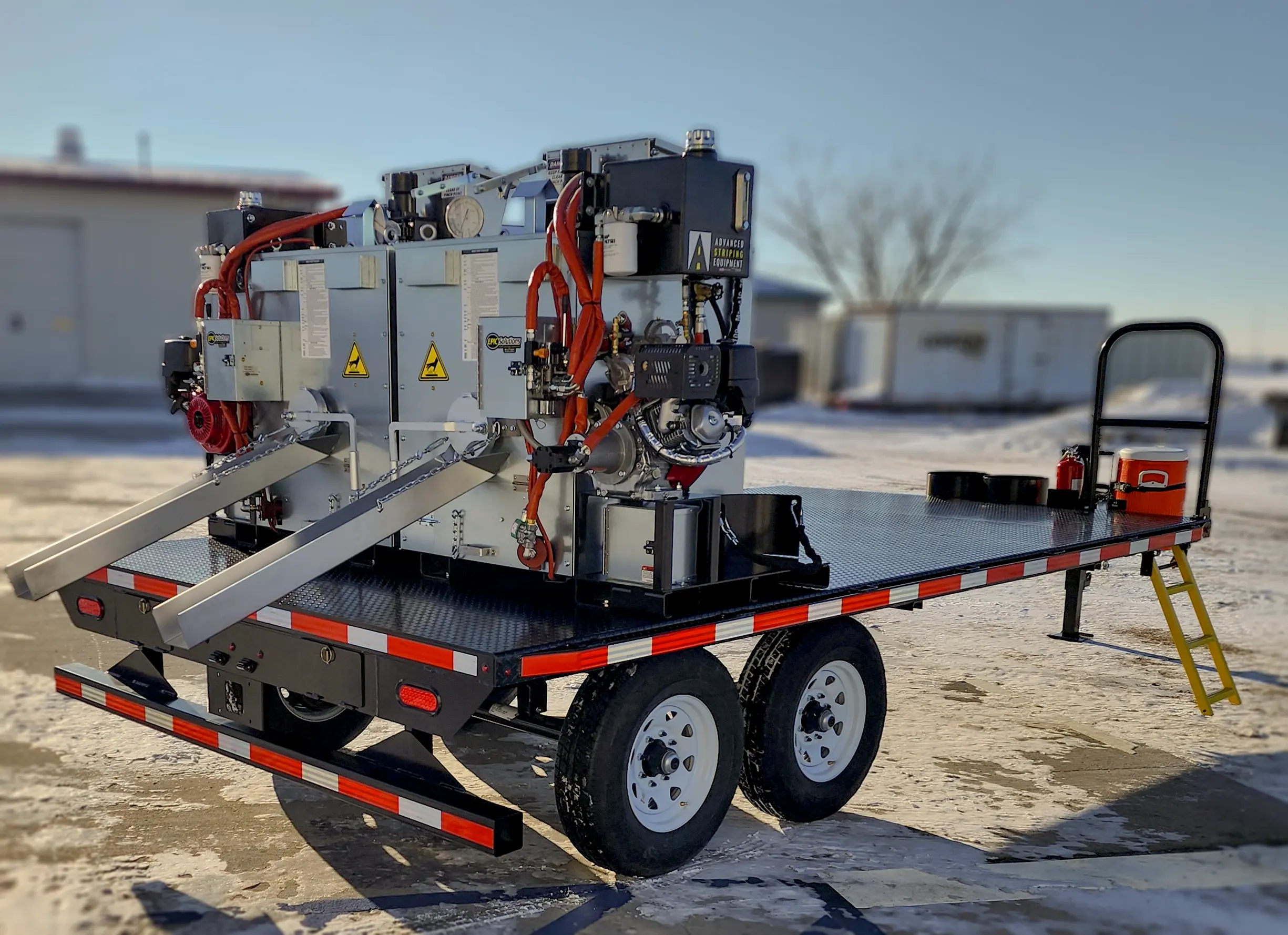

Double FastMelt 777 Trailer-rear angle view
OPTIONS

  • Side Rails with Removable Section

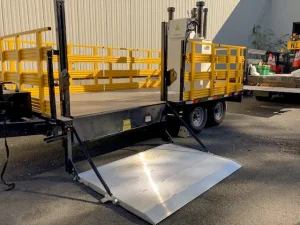

  • Lift-Gate
  • Arrow-Board
  • Beacon / LED Light Package

FastMelt 777 Kettle Specs

  • NEW Fuel Options: Diesel or Propane Fired
    • Propane Conversion Engine:  Briggs & Stratton Vanguard (LP) 305cc (10hp) Electric Start (10amp Alternator)
    • Propane (California) Conversion Engine:  HONDA GX390cc (LP), Electric Start (18amp Alternator) *California Compliant & Certified*
    • Diesel Engine:  Koehler 8.5hp Diesel (Air Cooled) Electric Start (20 amp Alternator)
  • Anti-Splash / 3-Way Safety Door
  • Automatic Pilot to Flame Technology / Direct Spark Ignition System. No time-consuming manual PILOT required.
  • All-in-one SKID platform (with forklift pockets for portability)
    • Compact – fits in the back of a pickup (1 ton or larger), flatbed, or trailer (48″ W x 42″ D x 57.5″ H)
    • Lightweight (1185lbs empty)
  • Melts and holds up to 777LBS at 400˚F
  • High-temperature limit safety switch to prevent overheating thermoplastic material
  • Burner access door safety gate
  • Thermoplastic door safety gate
  • Adjustable hydraulic speed control dial with forward and reverse action lever for optimum blending
  • Feed any applicator in minutes!
  • Manufactured and supported in the USA.
