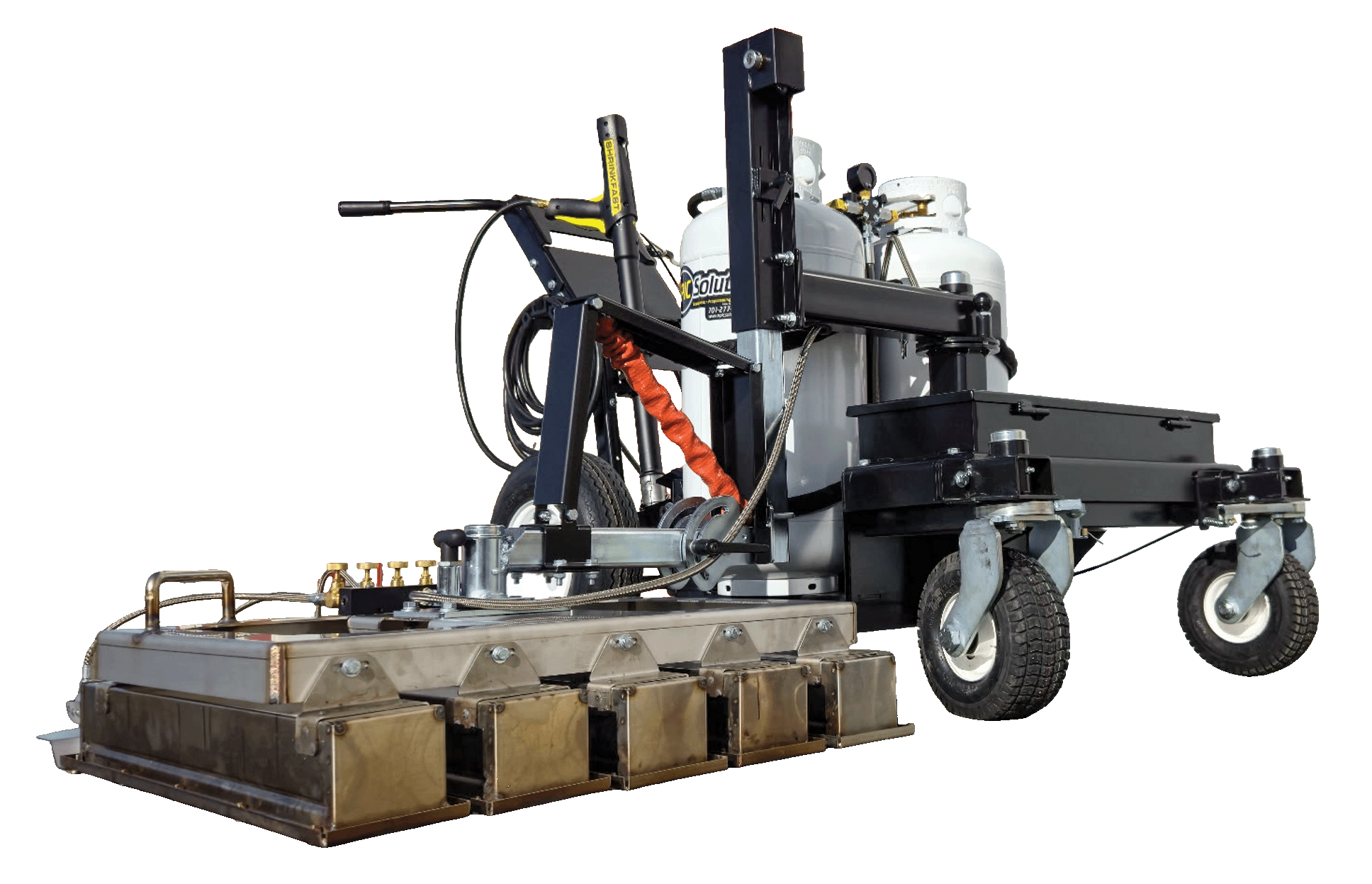

Thermoplastic Applicator with 300lb. Reservoir

Perfect for preformed thermoplastic application (arrows, symbols, legends -along with short – long straight line hot tape application. Extend your propane fuel by activating any combination of 1-5 of the burners. Height Adjustable and 27” wide max application.

Features:

  • Versatile: 90° Burner Rotation
    – Left, Center or Right Side Application

  • 27” Wide Application Max

  • 702 Sq. Inch Burner Surface Area

  • Optimized Propane Usage: activate 1 burner or all 5 burners (or any combination in between)

  • Height Adjustable
    – Smart Arm Easy-Lift

  • Five Infrared Burners Included [280,000 btu / hour (est)]
    – Activate Any Combination of the 1-5 Burners
    – Full Platform (5 burners) = 27”W x 26”L
    – Each Individual Burner = 5”W x 26”L

  • Surface Angle Adjustable: Stay with the angle of the road

  • On-Board HD Torch with 25’ Hose Included
    – 200,000 btu / hour (est.)

  • Swivel Wheel Caster on Both Front Wheels

  • Propane Bottle(s) Not Included

  • On-Board Toolbox Included

  • Optimized & Weight Balanced

InfernoMark 701 Infrared Heater Brochure

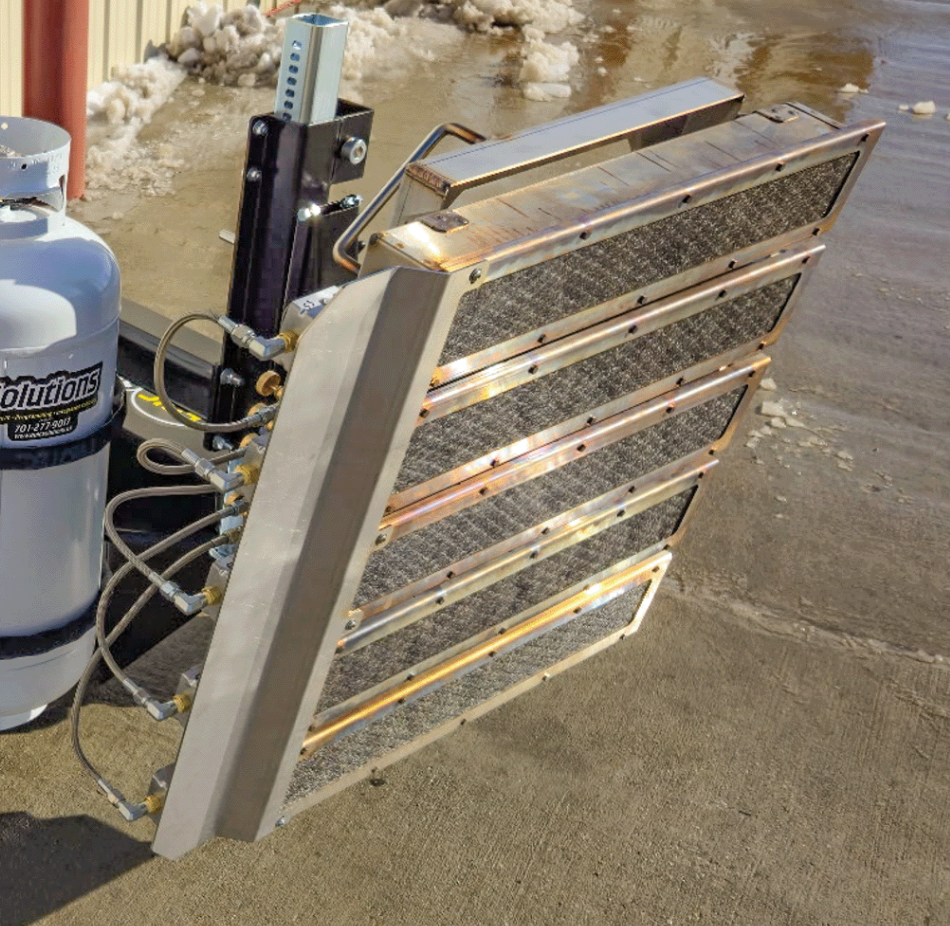

InfernoMark 701 burner tilted-up
702 Sq. In. of Infrared Burner Surface Area

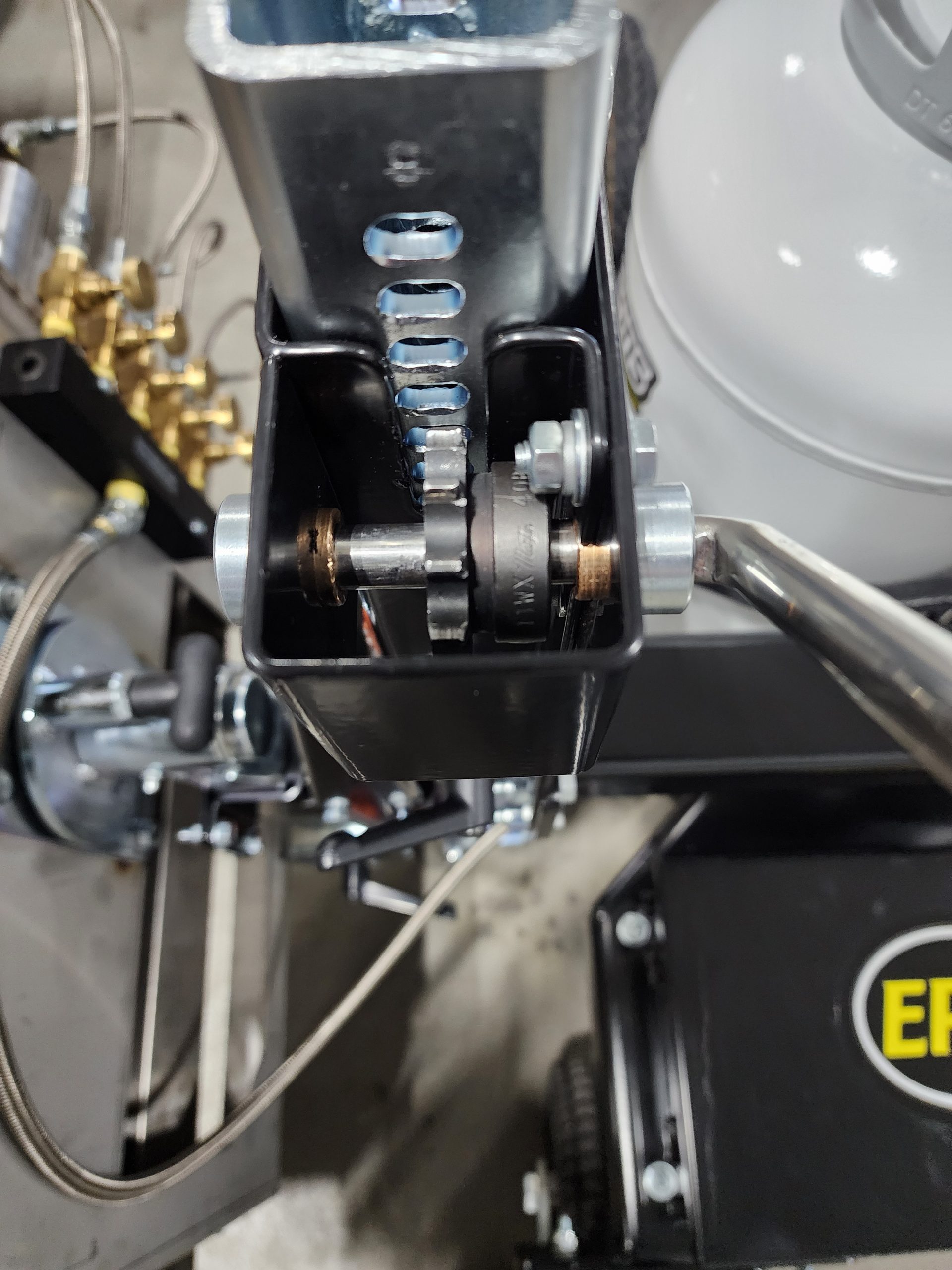

Smart Arm Easy-Lift Height Adjustment
Smart Arm Easy-Lift Height Adjustment

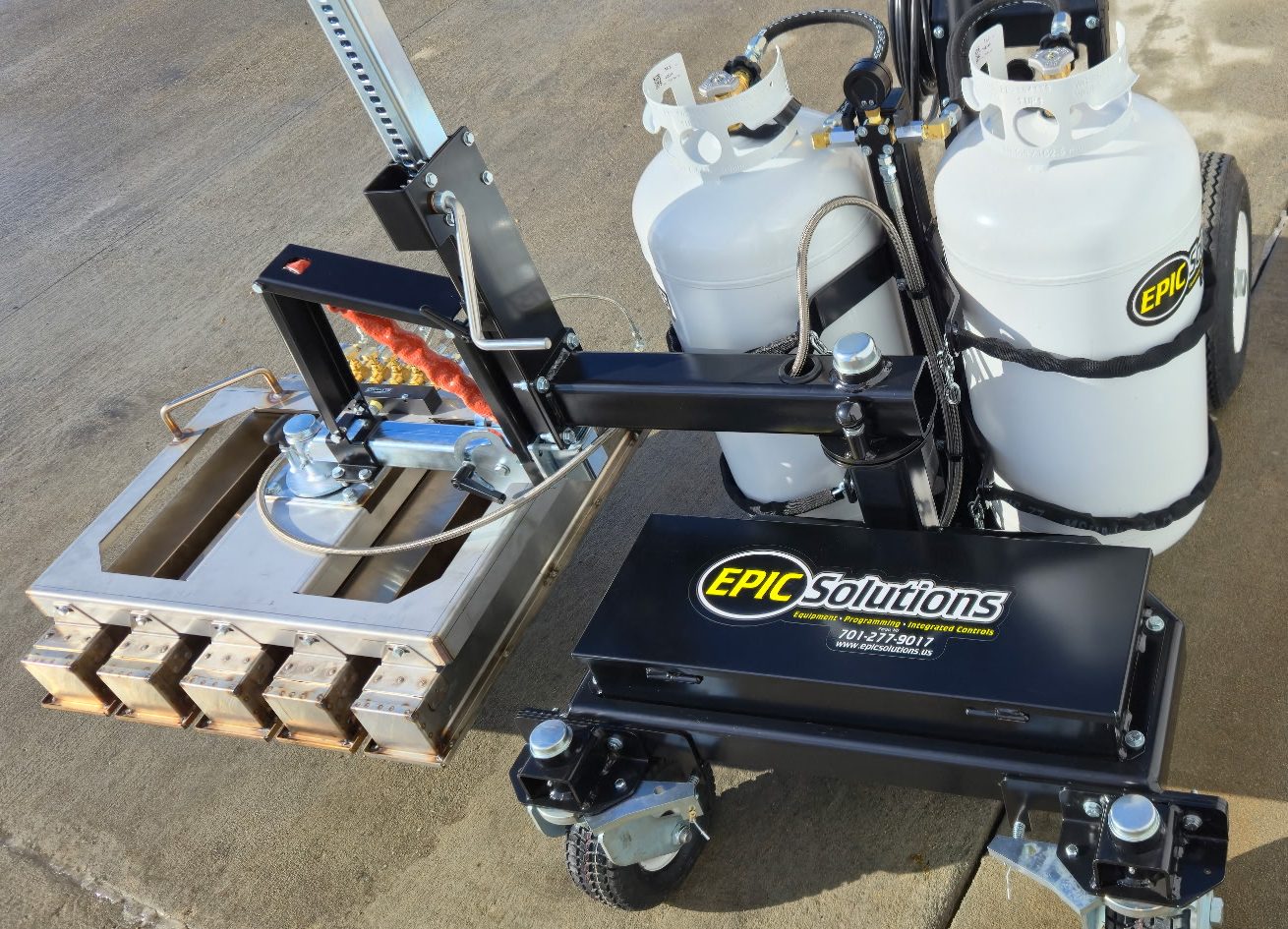

InfernoMark 701 Infrared Heater swiveling burner
Swivels to Left, Center, & Right Application Positions

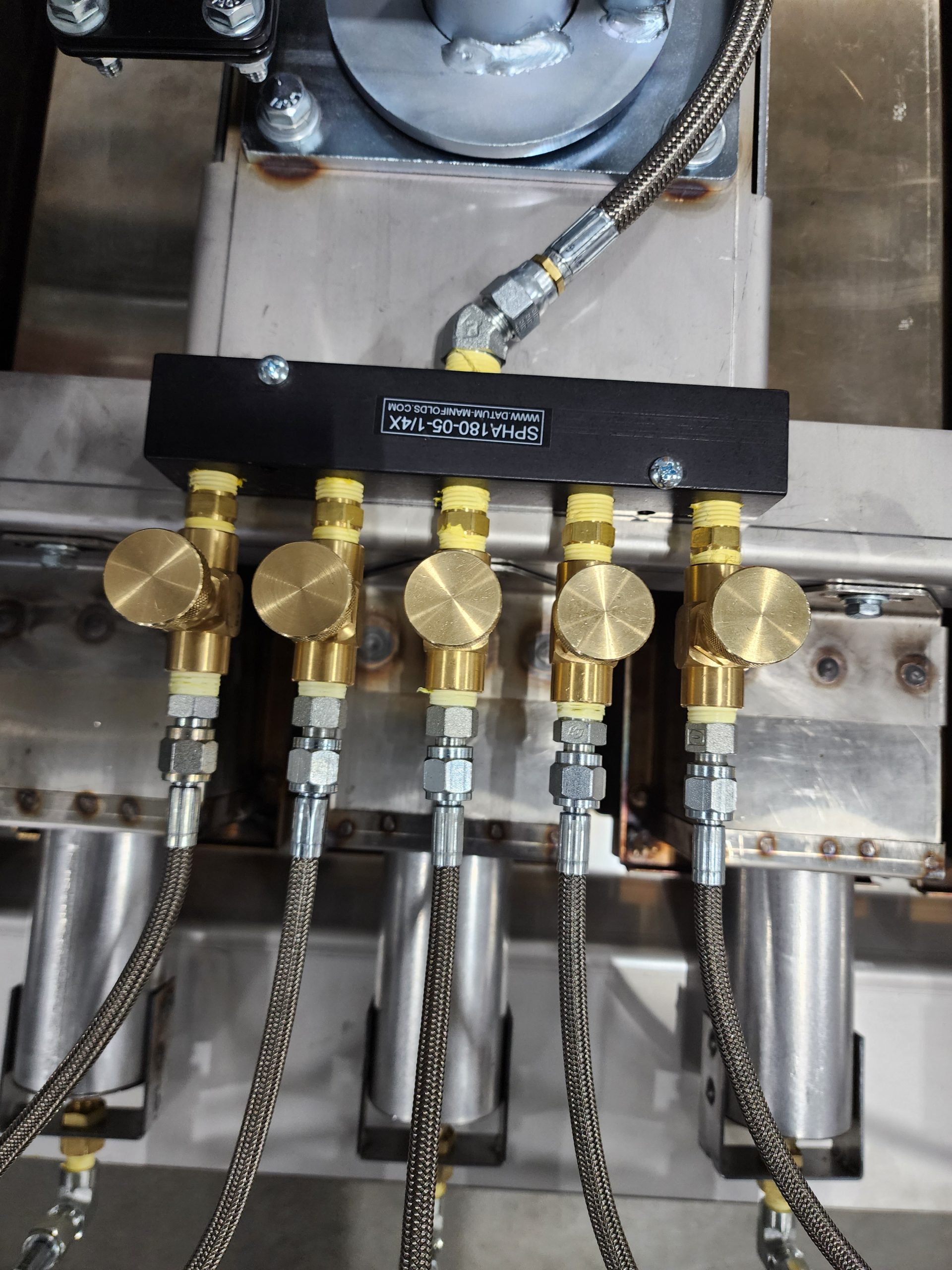

Infrared Burner Control Manifold
Individual Activation Burner Manifold
